What are the installation steps for a Volvo ECM harness?

As a reputable supplier of Volvo ECM harnesses, I understand the importance of a proper installation process. In this blog, I will walk you through the installation steps for a Volvo ECM harness, ensuring that you can carry out the installation with confidence and efficiency.

Step 1: Gather the Necessary Tools and Materials

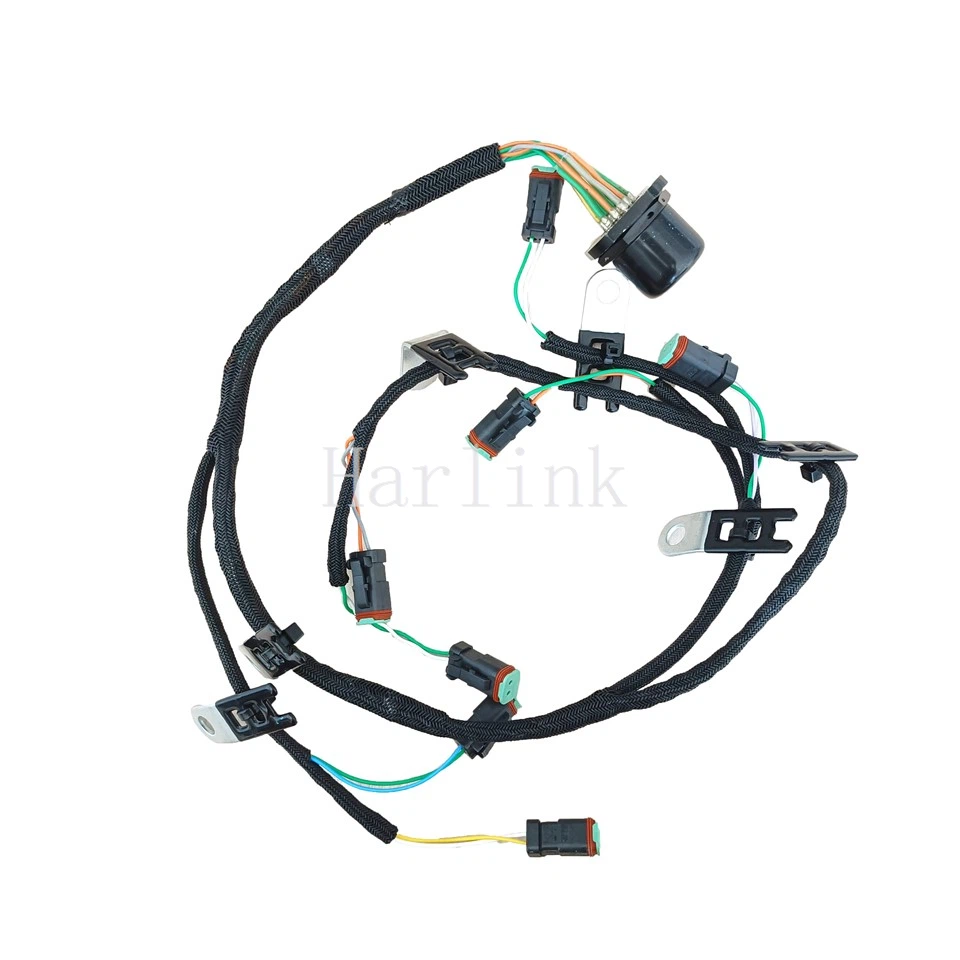

Before you start the installation, it is crucial to gather all the required tools and materials. This will help you avoid any delays during the installation process. Some of the tools you will need include a socket set, a wire stripper, a crimping tool, electrical tape, and a multimeter. In addition, make sure you have the correct Volvo ECM harness for your specific vehicle model. You can find a wide range of Volvo ECM harnesses on our website, such as the FH12 Engine Wiring Harness, 17441805 Electrical Wiring Harness For Volvo, and 22279234 ECU Wiring For Volvo Truck FM11.

Step 2: Prepare the Vehicle

The next step is to prepare the vehicle for the installation. Start by disconnecting the battery to prevent any electrical shocks or short circuits. This can usually be done by removing the negative terminal of the battery. Once the battery is disconnected, locate the ECM (Engine Control Module) in your Volvo vehicle. The ECM is typically located in the engine compartment or near the firewall. Make sure you have clear access to the ECM and the area around it.

Step 3: Remove the Old Harness

Before installing the new Volvo ECM harness, you need to remove the old one. Start by carefully examining the existing harness to identify the connectors and wires. Take note of the routing of the wires and the location of the connectors. This will help you during the installation of the new harness. Use a socket set to remove any bolts or screws that are holding the old harness in place. Gently disconnect the connectors from the ECM and other components. Make sure to label the connectors and wires if necessary to avoid confusion during the installation of the new harness.

Step 4: Inspect the New Harness

Once the old harness is removed, take a close look at the new Volvo ECM harness. Check for any damage or defects in the wires, connectors, or insulation. Make sure the harness is the correct one for your vehicle model. The new harness should match the length, color, and connector configuration of the old harness. If you notice any issues with the new harness, contact our customer support team immediately for assistance.

Step 5: Install the New Harness

Now it's time to install the new Volvo ECM harness. Start by routing the wires according to the same path as the old harness. Make sure the wires are not pinched or kinked, as this can cause electrical problems. Connect the connectors to the ECM and other components. Make sure the connectors are properly seated and secured. Use a crimping tool to make any necessary splices or connections. Cover the splices with electrical tape to prevent any short circuits.

Step 6: Secure the Harness

After the new harness is installed, secure it in place to prevent it from moving or vibrating. Use zip ties or clips to hold the harness in place along the routing path. Make sure the harness is not rubbing against any sharp edges or moving parts. This will help to prevent any damage to the harness over time.

Step 7: Reconnect the Battery

Once the new harness is properly installed and secured, it's time to reconnect the battery. Start by connecting the negative terminal of the battery. Make sure the terminal is tightly connected to prevent any electrical issues.

Step 8: Test the ECM Harness

After reconnecting the battery, it's important to test the Volvo ECM harness to ensure that it is working properly. Use a multimeter to check the electrical connections and the functionality of the ECM. Start the engine and check for any error codes or warning lights on the dashboard. If you encounter any issues, refer to the vehicle's service manual or contact our technical support team for further assistance.

Conclusion

Installing a Volvo ECM harness requires careful attention to detail and the proper use of tools and materials. By following the steps outlined in this blog, you can ensure a successful installation and reliable performance of your Volvo vehicle. If you have any questions or need further assistance with the installation process, please do not hesitate to contact us. We are a leading supplier of Volvo ECM harnesses and are dedicated to providing our customers with high-quality products and excellent customer service. Whether you need a FH12 Engine Wiring Harness, 17441805 Electrical Wiring Harness For Volvo, or 22279234 ECU Wiring For Volvo Truck FM11, we have the right product for you. Contact us today to discuss your needs and start the purchasing process.

References

• Volvo Vehicle Service Manuals
• Industry Best Practices for Electrical Harness Installation
