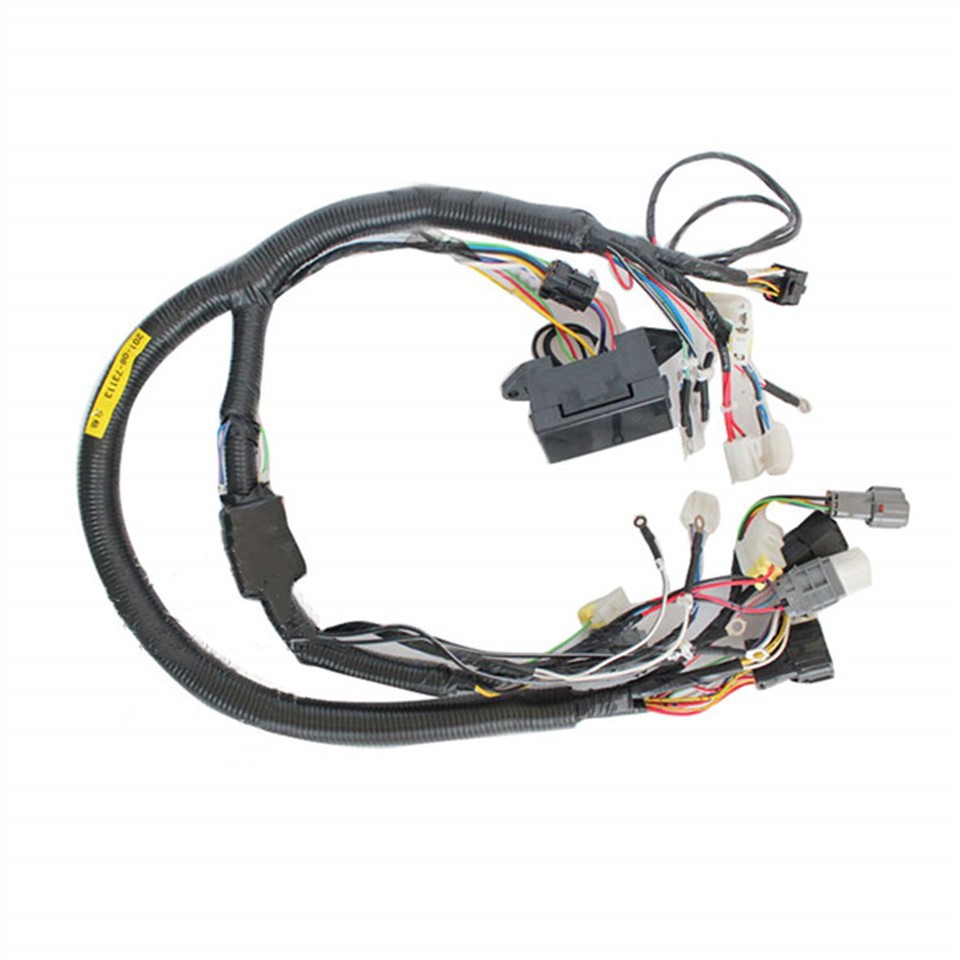

Road Machinary Wiring Harness

A: A Road machinary wiring harness is used to transmit electrical power and signals between various components of road mechanical equipment. It ensures the proper operation of systems such as the engine, lighting, controls, and sensors, enabling the equipment to function smoothly.

A: It typically consists of wires, connectors, terminals, insulation materials, and protective sheaths. The wires carry the electrical current and signals, the connectors and terminals are used to join the wires to the components, the insulation materials prevent short - circuits and electrical interference, and the protective sheaths safeguard the wiring from environmental damage.

A: First, the wiring harness should be carefully routed along the predetermined paths in the equipment, following the design layout. Connectors should be properly inserted and secured to the corresponding components, ensuring a tight and reliable connection. The wiring harness should be fixed in place using clips or ties to prevent it from moving or rubbing against other parts.

A: Clean the wiring harness and connectors to remove dust and debris. If a fault is detected, the specific problem area should be identified. Broken wires can be spliced or replaced, and damaged connectors or insulation can be repaired or replaced. It is important to use appropriate tools and materials and follow the manufacturer's instructions for maintenance and repair to ensure the reliability and safety of the wiring harness.

A: Common faults include wire breakage due to vibration and fatigue, loose or corroded connectors leading to poor electrical contact, insulation damage causing short - circuits or electrical interference, and damage to the protective sheath exposing the wiring to the elements.
