Off-road Wiring Harness

Your Leading Off-road Wiring Harness Supplier

HARLINK is a leading provider of customized wiring harness and electrical solutions for various industries. We have a variety of styles of off-road wiring harnesses. These wiring harnesses are responsible for connecting all the electrical components and devices of street cars, including batteries, alternators, starters, ignition systems, lights, and more. At HARLINK Technology, we are dedicated to providing solutions that harness the power of technology.

Why Choose Us?

01.

Professional Team

Our team is made up of highly skilled technicians, workers and sales staff who share a passion for designing and manufacturing high-quality wiring solutions.

02.

Rich Experience

With over 15 years of experience meeting the needs of manufacturers, we specialize in designing and manufacturing top-quality Wiring Harness and Electrical solutions for various industries.

03.

Advanced Equipment

By using advanced production equipment and testing methods, we are able to ensure the reliability and consistency of our wire harnesses, meeting the highest standards of our customers.

04.

Broad Market

Our company's wiring harness products have achieved success in various regions and markets around the world. Our primary sales regions include Europe, North America, and other countries and regions such as the Middle East, South America, and Oceania.

Specifications of Off-road Wiring Harness

Item	Value
Product Name	Off-road Wiring Harness
Application	Off-Road Vehicle
Connector Type	Other
Rated Voltage	220V
Jacket Material	Pvc
Conductor Material	Copper
Length	35m
Insulation Material	PVC

Types of Off-road Wiring Harness

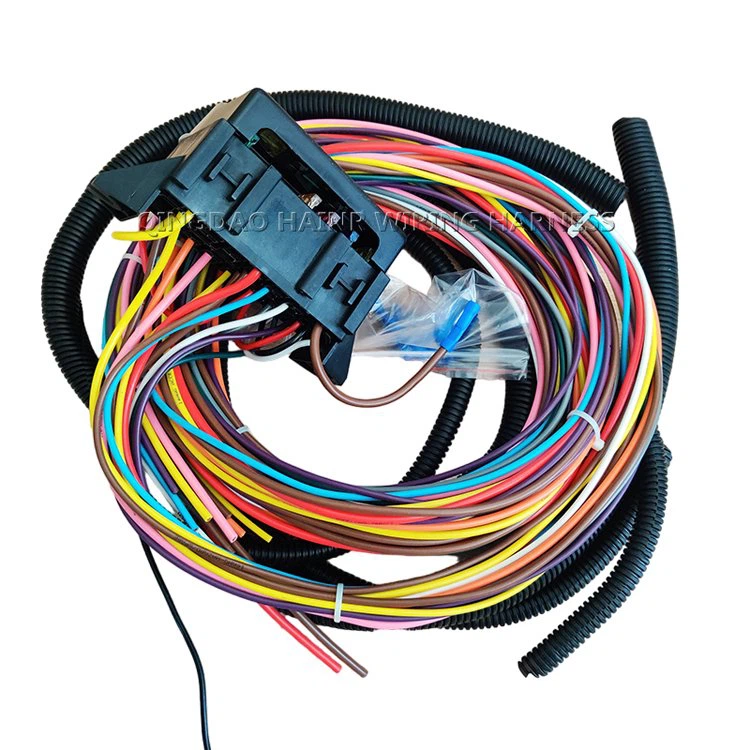

12 Circuits Wiring Harness
When it comes to vintage cars, the 12 circuits wiring harness is an essential component. It connects all the electrical components in the car, including the headlights, taillights, horn, and ignition system.

15 Circuits Wiring Harness
Our factory produce high-quality vintage car 24 circuits and 15 circuits Wiring Harness. we designed to meet the needs of our customers. It is also customizable based on the specific requirements of our customers.

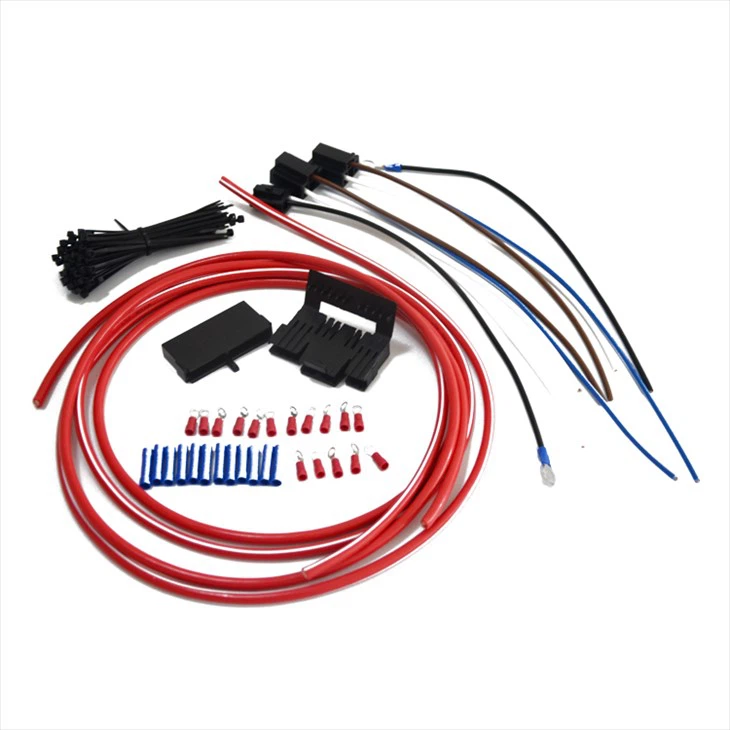

Wiring Kit
A wiring kit acts as the backbone of any vehicle's electrical connections. It comprises various wiring harnesses, connectors, and cables that provide power and facilitate communication between a vehicle's components.

Common Materials for Off-road Wiring Harness

Wire Material: Copper vs. Aluminum
Wiring harnesses are typically made from copper or aluminum wires. Copper is the preferred material for off-road applications due to its superior conductivity and resistance to corrosion. Although more expensive, copper wiring ensures a stable electrical connection, even in wet or humid conditions. Aluminum, while lighter and cheaper, doesn't perform as well in demanding environments and is more prone to corrosion.

Outer Casing: Plastic vs. Rubber
The outer casing of the wiring harness is your first line of defense against the elements. Rubber casings are generally more durable and better suited for off-road use compared to plastic ones. Rubber provides excellent resistance to water, dust, and abrasions, which are common in off-road conditions. A high-quality rubber casing will protect the internal wires from damage and ensure that the harness remains functional, even after prolonged exposure to harsh environments.

Customizable

Condition	New
MOQ	100PC
Packaging	Carton
Wire size	As customer requirements
Wire color	As customer requirements
Wire length	As customer requirements
Materials	As customer requirements

Notes on Installing Off-road Wiring Harness

Use rubber plugs or rubber sleeves with waterproof plug-ins. Add petroleum jelly and other methods in the plug-in to avoid water in the plug-in to oxidize the surface of the terminal.

The plug-ins connected to the vibration of moving parts must be fixed. Avoid the transmission of vibration on the wiring harness, resulting in the virtual connection of the connection points in the wiring harness and the terminals in the connector.

The reliability of the rubber parts on the wiring harness must be guaranteed. The harness through the hole rubber sleeve must be installed reliably. Under normal use, the rubber sleeve cannot be separated from the installation position.

When considering a car collision, the wiring harness cannot be squeezed. The wire harness is squeezed and broken, and the internal short circuit will cause a fire instantaneously, causing further injury to the drivers and passengers.

The plug-in should not be in direct contact with the external environment such as rain. Do not contact with oil. Do not install in rainwater gathering areas or outside the car. Take protective measures when it must be arranged in the above-mentioned area.

When using metal buckles, plastic or rubber protection must be provided on the buckles.

The wiring harness at the wheel and under the floor requires additional protection. Avoid driving on cross-country roads, sandy roads, or winter icy and snowy roads, splashing hard stones, ice, and snow blocks to break the wiring harness.

Convenience of replacing the fuse box relay, using electrical appliances with high frequency. The position of the fuse box relay in the fuse box is arranged in a searchable and easy-to-operate position.

When installing on vibration or moving parts, the length should be reserved according to the actual situation.

Maintenance of Off-road Wiring Harness

Proper storage is critical to maintain and to protect the quality of the wire and cable products before installation.
All indoor or dry rated wire & cable products shall only be stored in a controlled environment regardless of the storage duration. All building wire products should be stored indoors to reduce the risks of color fading due to sunlight exposure.
For bare wires or outdoor and wet rated power cables, care needs to be taken not to expose the products to any severe weather conditions or potentially harsh environmental elements.

Certificate

productcate-837-282

Ordering Process

COMMU NICATION DETAILS
Contact online customer service to communicate the details.

START DESIGNING
Start your prototype design.

CONFI RMATION OF THE FINAL DRAFT
Iterate on details to finalize.

PAYMENT OF DEPOSIT
Factory prepares materi-als and customers make deposits.

START OF PRODUCTION
Factory starts produc-tion.

DELIVERY RECEIPT
The customer confirms the quality of the goods and receives them.

Payment Terms

T.T with 30% downpayment, 70%before shipment.
Paypal or West Union also accept.

Packing & Transportation

productcate-712-489

FAQ

Q: How to choose the right Off-road wiring harness?

A: Consider the specific requirements of the equipment, including its power consumption, signal types, and operating environment. Look for a wiring harness with the appropriate wire gauges and insulation materials to handle the electrical load and provide the necessary protection.

Q: How do you check the resistance of a wiring harness?

A: For testing resistance in a wiring harness (looking for an open circuit for example) you need to probe at both ends of the wire in question.

Q: How to identify the quality of a Off-road wiring harness?

A: · Check the material of the wires. High - quality wiring harnesses usually use copper wires, which have better conductivity and durability.
· Examine the insulation. The insulation should be intact without cracks, hardening, or melting, which can prevent short - circuits and electrical interference.
· Check the connectors and terminals. They should be made of copper or brass for better conductivity and corrosion resistance, and there should be no signs of looseness, oxidation, or damage.

Q: How to maintain a Off-road wiring harness?

A: Regularly check for signs of wear, damage, or looseness of the wires, connectors, and terminals. If any problems are found, repair or replace the damaged parts in a timely manner. When the vehicle is not in use for a long time, it is advisable to disconnect the battery to prevent the wiring harness from being damaged by long - term power - on.

Q: How can you prevent problems with the Off-road wiring harness?

A: Regular vehicle maintenance, including inspecting the wiring harness for signs of wear and damage, keeping the connectors clean and dry, and ensuring proper routing of the harness to prevent it from being pinched or rubbed against other components, can help prevent problems. Avoiding exposure to extreme temperatures and corrosive substances can also prolong the life of the wiring harness.

We're professional off-road wiring harness manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy high-grade off-road wiring harness at competitive price from our factory. Contact us for quotation.
